Seal integrity assessment for food packaging constitutes an indispensable control point in the global food safety management system. This standardized testing protocol systematically verifies the ability of food packaging structures to maintain hermetic sealing performance throughout the entire lifecycle of distribution, warehousing and point-of-sale handling, so as to mitigate risks of food contamination and premature quality degradation. The core specifications of this testing procedure are detailed as follows:
1. Regulatory and Operational Necessity of Seal Integrity Verification
- Barrier Against Exogenous Contamination: A qualified hermetic seal forms an effective physical barrier that prevents ingress of airborne microorganisms, particulate contaminants and foreign matter into packaged food, ensuring full compliance with food hygiene and sanitation requirements.
- Retention of Organoleptic Properties and Extended Shelf Life: Properly sealed packaging retards oxidative degradation and moisture migration within packaged food, thereby preserving the inherent flavor, texture and nutritional attributes of food products, while achieving the labeled shelf-life duration.
- Mitigation of Supply Chain Losses: Routine seal integrity screening enables early identification of inherent defects in packaging materials, heat-seal process deviations and structural vulnerabilities, thus preventing product leakage, package rupture and subsequent product rejection during long-haul transportation and storage.
2. Standardized Testing Methodologies
- Vacuum Chamber Seal Leak Test (Negative Pressure Protocol): Place the hermetically sealed food specimen inside a controlled vacuum chamber, apply specified negative pressure gradient and hold for the required dwell time, then continuously monitor the specimen for persistent bubble formation, abnormal expansion or air escape phenomena to determine conformance to sealing performance specifications. This methodology is widely recognized for its high operability and real-time visual readout, and has been adopted as a routine quality control procedure across the food manufacturing sector.
- Internal Pressurization Burst and Seal Strength Test (Positive Pressure Protocol): Introduce compressed gas into the package cavity at a calibrated flow rate, maintain the target test pressure for a predefined holding period, and monitor for pressure decay or catastrophic package failure. The recorded pressure variation curve and final burst pressure value enable quantitative characterization of the package’s pressure resistance threshold and overall sealing robustness.
3. International Standards and Compliance Frameworks
- In alignment with ISO, ASTM and regional food safety regulatory mandates, food packaging seal performance must meet stringent performance benchmarks tailored to specific product categories. For shelf-stable food products requiring extended ambient storage, packaging systems shall demonstrate elevated barrier performance to guarantee food safety and quality retention over the full designated shelf-life period.
- Test parameters shall be calibrated to account for critical variables including packaging material composition, film thickness, pouch dimension and seal geometry, to ensure test result traceability, reproducibility and alignment with internationally accepted testing protocols.
4. Calibrated Testing Instrumentation

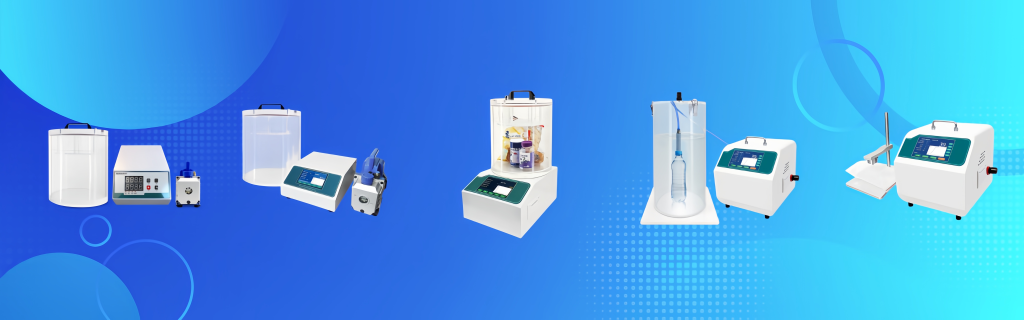

- A full portfolio of metrologically verified testing equipment is available for food packaging seal integrity assessment, encompassing calibrated vacuum seal testers, positive pressure seal strength analyzers and high-sensitivity leak detection systems. All instrumentation can be configured with custom test protocols to accommodate diverse quality control requirements for laboratory batch testing and in-line production monitoring.
As a foundational element of food safety assurance, standardized seal integrity testing for food packaging delivers objective, auditable evaluation of packaging system sealing performance, and provides robust technical evidence to support food manufacturers in fulfilling global regulatory obligations and safeguarding public health.
